KD4VRI

Ronnie's remodeled shack is neater than most, and he has plenty of room for antennas

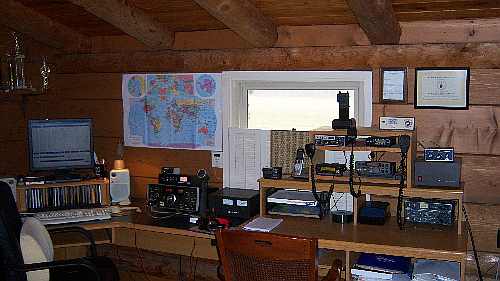

Here's the lineup in Ronnie's shack



Left Shelf L-R

HF Ten-Tec Omni D, LDG AT-11MP Ant. Tuner on top of HF, Signalink on top of Ant. tuner, 35A Astron power supply on right

Far-right bottom shelf IC-251A all-mode 2m for SSB



Middle shelf L-R

RF Analyst, IC-2410H dual-band, mono-band 10 meter, 20A Astron power supply,  MFJ ant. tuner on Astron

Top Shelf

Alinco HT, and MFJ HF/144/440 watt and swr meter.



Part of the farm

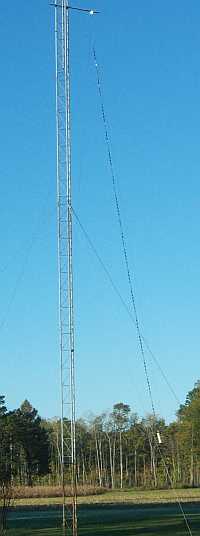

On the HF side, here's my 50-foot Rohn 25 tower supporting a home-made dipole hung up as an inverted V. During picture taking, I decided to try a G5RV from KG4ODW Jimmy in Eure, NC. Thanks Jimmie

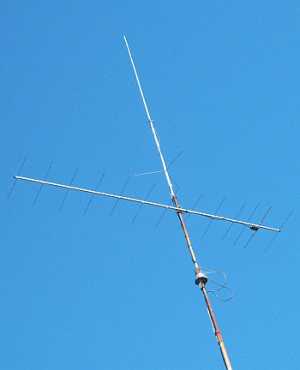

On the VHF side, is my home-made 40-foot folding mast. On top is a Cushcraft ARX-2B 2m vertical and under it is a 13-element Cushcraft A13B2 15.8-dBi gain beam for 2m sideband.

Both are mounted at the top of the mast, which is braced near the peak of the roof along the side of the house.
